New FAULHABER IEP3 incremental encoder

Impressive accuracy through the latest chip technology.

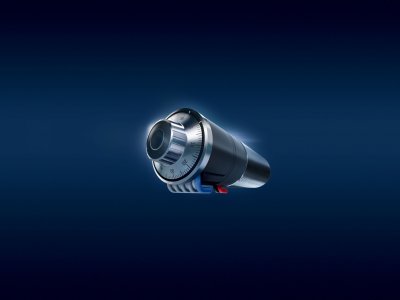

The IEP3 achieves a very high resolution and accuracy thanks to the latest chip technology. © FAULHABER

With the launch of the IEP3, FAULHABER expands its product line with an incremental encoder which, thanks to the latest chip technology, achieves a very high resolution and accuracy. With a diameter of just 8 mm, the IEP3 is very lightweight and compact yet still offers a resolution of up to 10,000 lines per revolution – made possible by the latest chip technology with high interpolation. In the standard version, the resolution is freely programmable from 1 – 4,096 lines per revolution. Moreover, the chip technology that is used ensures a high positional accuracy of typically 0.3 °m as well as a high repeatability of typically 0.05 °m thanks to accuracy compensation.

The IEP3 can be powered with a supply voltage of both 5 V and 3.3 V. This makes it suitable for use in battery-powered applications as well, which are typically operated with 3.3 V. A wide temperature range of -40 to + 125 °C likewise opens the door for various possible uses. The IEP3 is suitable for a wide array of applications and is characterized by high accuracy in the smallest of installation spaces. Application areas include, among others, prosthetics in the field of medical technology, optical applications, such as telescopes, microscopes, lasers or cameras, semiconductor production or robotics.

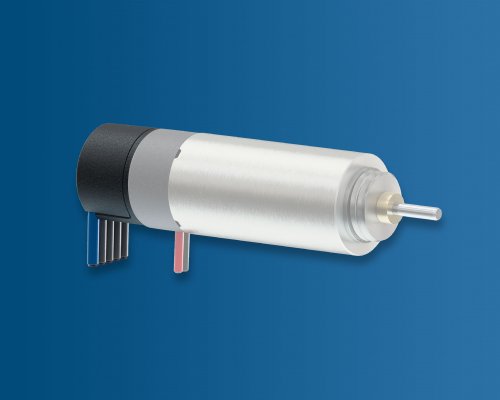

The ON-axis encoder with 2-pole-sensor magnet is simple in design and robust. Thanks to its modular characteristics, which FAULHABER already established with the IE3 encoder series, the IEP3 encoder represents a platform for various motors from the drive specialist. The new product can be combined with DC-motors of the 0816SR, 1016SR, 1024SR series as well as with the stepper motors of the AM0820, AM1020, AM1524 series.

Various options are available for the electrical connection of the encoder, such as PVC or FEP cables, connector options as well as different cable lengths.

The advantages at a glance:
• High resolution with up to 10,000 lines per revolution
• Latest chip technology with accuracy compensation for high positional accuracy and repeatability
• Very lightweight and compact

www.faulhaber.com

Company box: The drive experts from Schönaich
FAULHABER is specialized in the development, production and deployment of high-precision miniaturized and miniature drive systems, servo components and drive electronics with up to 200 watts of output power. This includes putting into effect customer-specific packaged solutions as well as an extensive range of standard products, such as Brushless Motors, DC-Micromotors, Encoders and Motion Controllers. The FAULHABER trademark is recognised worldwide as a symbol of high quality and reliability in complex and demanding application areas, such as medical technology, factory automation, precision optics, telecommunications, aviation and aerospace, and robotics. From the powerful DC-motor with a continuous torque of 200 mNm to the filigree micro drive with an outer diameter of 1.9 mm, the FAULHABER standard range can be combined in more than 25 million different ways to create the optimum drive system for a particular application. At the same time, this technological construction kit is the basis for modifications which allow to configure special versions to meet the specific needs of customers.

www.faulhaber.com
